The Iron Fly and the Butterfly

The iron condor in the last chapter gave you a wide, comfortable plateau and a modest credit. But what if you have a stronger view? What if you do not just think RELIANCE will stay calm, you think it will finish right around 1320, more or less where it sits today? When you are willing to bet on a precise landing spot rather than a broad range, you can trade the condor's tighter, higher-reward cousins. They collapse the wide plateau into a single sharp peak. They pay much more if you are right about where price pins, and they cost you a small, fixed amount if you are wrong. This chapter teaches two of them, the iron fly and the call butterfly, and shows you the neat truth that they are two different routes to the exact same pin-the-strike payoff.

The iron fly: a condor with its shorts pulled to the middle

Start with what you already know. An iron condor sells a put spread below and a call spread above. The iron fly is the same idea, except you pull both short strikes all the way in to the same at-the-money strike, 1320. Instead of selling a 1280 put and a 1360 call with a gap between them, you sell both at 1320 and protect them with wings 40 rupees out.

The two sold options in the middle are a short straddle at 1320, the engine that collects a fat credit. The two bought wings, the 1280 put and the 1360 call, are the insurance that caps your loss on both sides. You collect Rs 15,590 twice from the shorts and pay Rs 7,381 and Rs 7,795 for the wings, for a net credit of about Rs 16,005. Because both shorts sit at the same strike, the safe plateau of the condor shrinks to a single point. That is why this shape is called a fly: a tall body in the centre and two short wings.

Reading the iron fly payoff

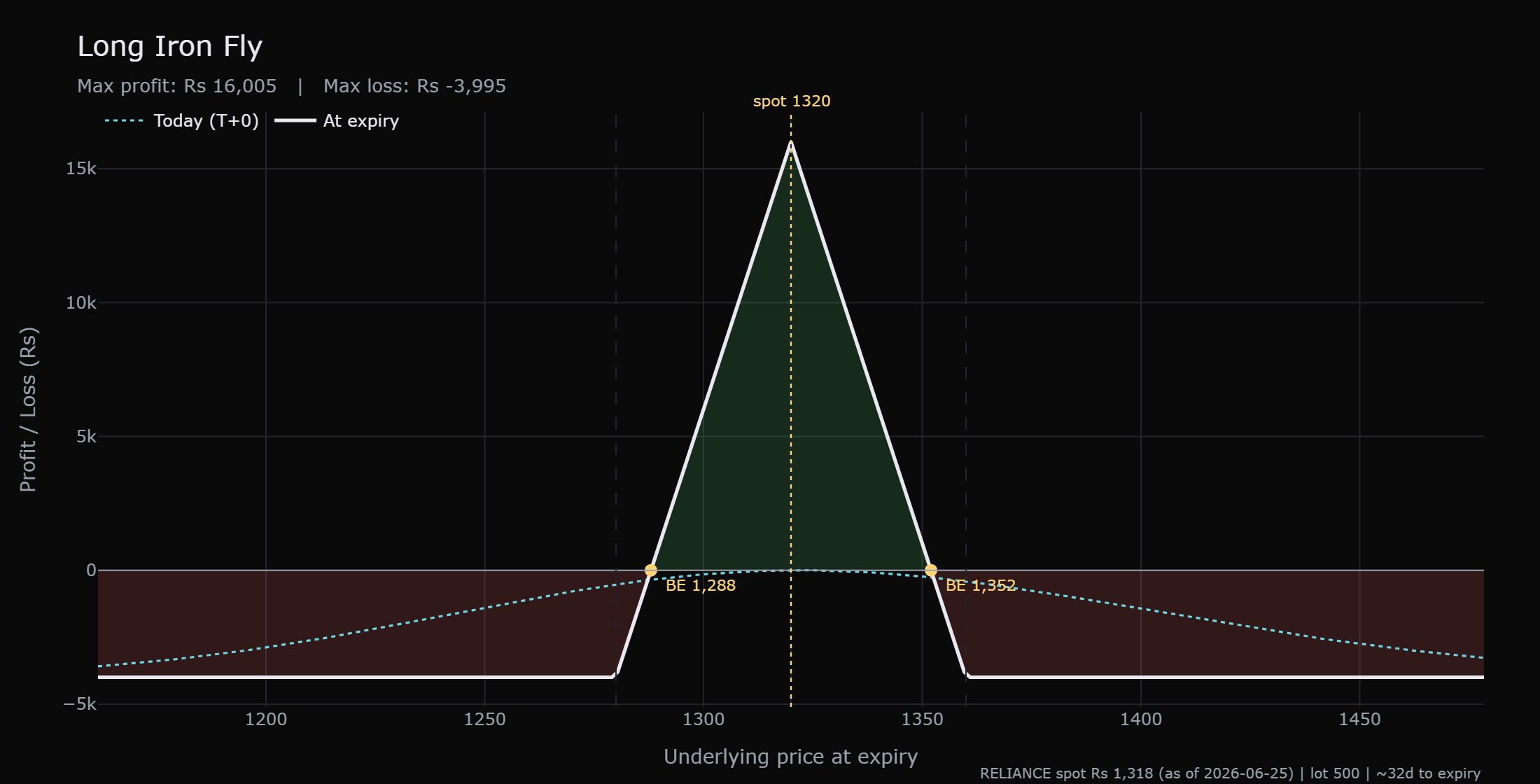

The diagram below is the real payoff, built on RELIANCE at spot Rs 1,318, ATM strike 1320, lot 500, about 32 days to expiry. The solid white line is value at expiry, the dotted cyan line is today, the amber dotted vertical is the spot at 1320, and the two amber dots mark the breakevens.

The shape is a sharp tent with clipped corners. At the peak, right at 1320, sits your maximum profit of Rs 16,005, earned only if price finishes exactly there. From the peak the line falls away steeply on both sides as either sold option goes in-the-money. It crosses zero at the two breakevens, 1288 and 1352, which sit 32 rupees on each side of 1320, the credit per share. Between those two you keep something; outside them you are in a loss. But the loss does not run away, because at 1280 and 1360 your bought wings catch it. The line flattens at a maximum loss of just Rs 3,995 and goes no further. Notice how much taller this peak is than the condor's plateau, and how much smaller the capped loss is. You are paid far more for being right about the exact landing, and you risk far less when wrong, in exchange for needing a precise outcome instead of a broad range.

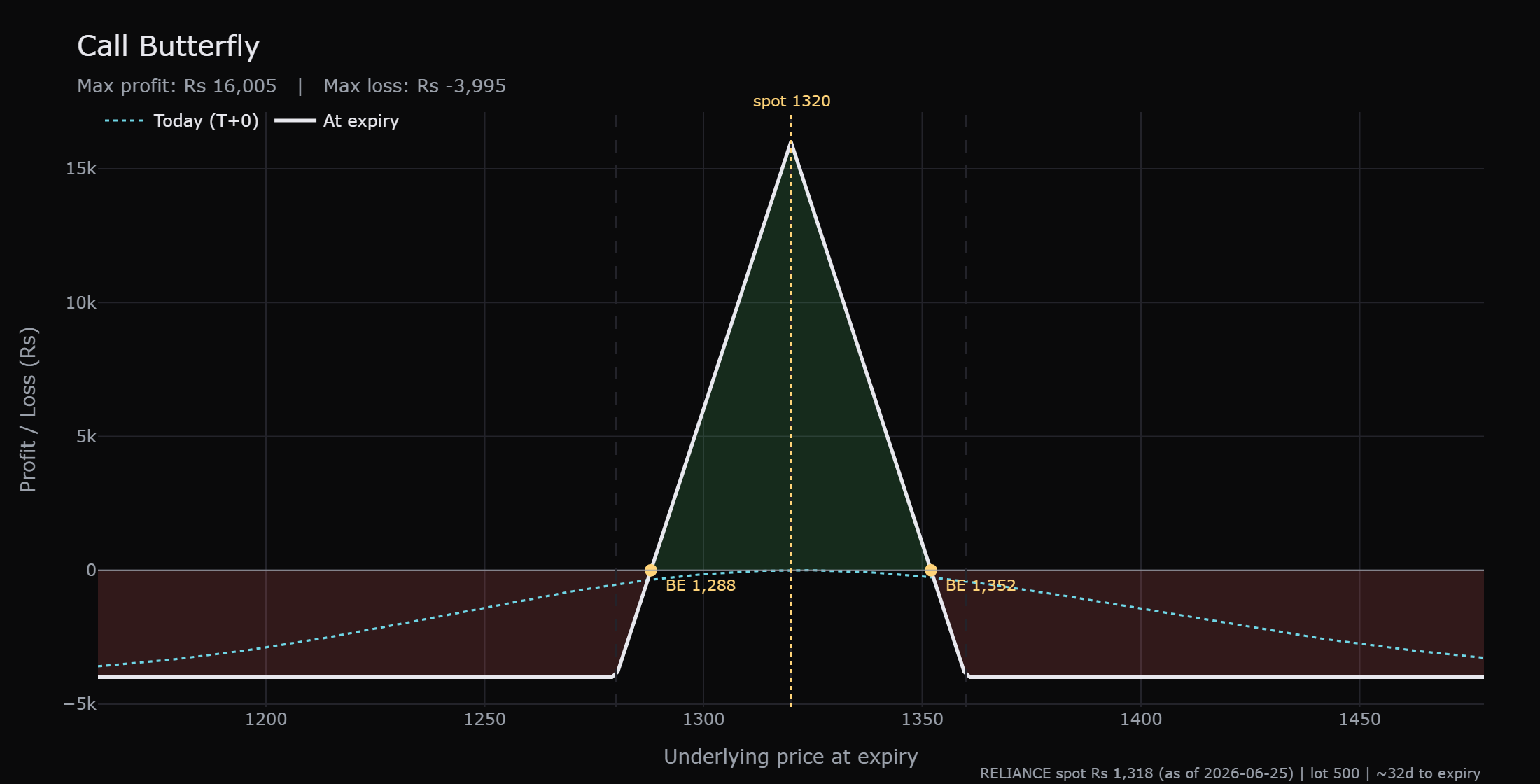

The call butterfly: the same shape from four calls

Now the elegant part. You can build that identical pin-the-strike payoff without using a single put. The call butterfly uses three call strikes: you buy one call below, sell two calls at the middle, and buy one call above. It is a debit trade, meaning cash leaves your account on day one, the opposite cash flow from the iron fly, yet the payoff at expiry is the same shape with the same three numbers.

You buy the wings at 1280 and 1360 and sell two bodies at the centre 1320. The two sold calls are what generate most of the value, and the two bought calls cap the risk on each side. Because you pay more for the deep 1280 call than you take in, the position costs a small net debit of about Rs 3,995, and that debit is your maximum loss. At the pin of 1320, the structure is worth its full width, and your profit reaches the same Rs 16,005.

Two routes, one destination

Lay the two side by side and the lesson lands.

The three numbers are identical. The breakevens are identical. The payoff shapes drawn on the chart are the same sharp tent. The only real difference is the wiring and the cash flow. The iron fly takes in a credit and risks paying out; the call butterfly pays a debit and aims to collect. This is one of the most important ideas in all of options. Many named strategies are just different leg combinations that produce the same payoff. Once you see that, the long list of strategy names stops being a vocabulary test and becomes a small set of shapes you can build several ways.

When to use a fly instead of a condor

Reach for an iron fly or a butterfly, rather than a condor, when your view is sharper. The condor pays a modest credit across a wide range. The fly pays a much larger reward, here nearly double, but only across a narrow band around one strike. You are trading probability for payout. The condor is more likely to win a little; the fly wins less often but much bigger when price genuinely pins the strike, and it loses only a small fixed amount when it does not.

You can build both versions in sandbox trading (analyzer mode in OpenAlgo), placing the four legs and watching the same sharp tent appear whether you wire it from puts and calls or from calls alone. Doing that once, and seeing two different baskets draw the identical curve, teaches the route-versus-destination idea better than any paragraph can.
