Order Types and the Order Lifecycle
Every order type on Indian exchanges and the full life of an order - entry, modification, cancellation, the audit trail and client-code controls.
- ·Market, limit, SL and SL-M
- ·IOC, GTT and iceberg
- ·Order entry and modification
- ·Cancellation and the audit trail
- ·UCC and client-code controls
- ·Product types (MIS, NRML, CNC)
In the last chapter we learned to read the book. Now we learn to talk to it. Every interaction you have with the market - every entry, every exit, every stop - is an order, and an order is not a single instant. It is born, it lives, and it dies, passing through a small set of states with a precise timestamp on each transition. Quants who bleed money on execution almost never lose it on the idea. They lose it here, in the gap between "I want to buy" and "I am filled". So let us be deliberate about exactly what we are sending, and exactly what happens to it after we hit send.
The menu of order types
An order is an instruction with a type, and the type decides how it meets price-time priority. On Indian exchanges you have a compact but expressive menu.
- A market order crosses the spread and fills now at the best available price. Certainty of fill, no certainty of price.
- A limit order rests in the book at a price you choose and fills only at that price or better. Certainty of price, no certainty of fill.
- A stop-loss limit (SL) order is dormant until the market touches a trigger price; it then becomes a limit order at a price you set. It protects a position or arms a breakout.
- A stop-loss market (SL-M) order is the same, except on trigger it becomes a market order - guaranteed to fire, at whatever price the book offers.
- IOC (immediate-or-cancel) fills whatever it can the instant it arrives and kills the unfilled remainder. No resting, no information leak.
- GTT (good-till-triggered) is a broker-side resting instruction that watches the market for days and submits an order only when your condition trips.
- Iceberg / disclosed quantity shows the book only a slice of a large order at a time, so you do not reveal your full hand to faster participants.
Every order type is a different answer to one question: how do I trade off certainty of fill against certainty of price, while leaking as little information as possible? Pick the type that matches your intent, not the one your hand defaults to.
The cleanest way to feel the difference is to price a single real trade four ways. The example below pulls the live last-traded price for a liquid name and lays out what each order type would actually do around it - no order is placed, this is pure construction from the quote.
# What each order type would do for a long trade, built from a real live LTP.
import os
from openalgo import api
client = api(
api_key=os.getenv("OPENALGO_API_KEY", "your_api_key_here"),
host=os.getenv("OPENALGO_HOST", "http://127.0.0.1:5000"),
)
SYMBOL, EXCHANGE, TICK = "RELIANCE", "NSE", 0.05
ltp = client.quotes(symbol=SYMBOL, exchange=EXCHANGE)["data"]["ltp"]
def to_tick(p): # snap a price to the exchange tick size
return round(round(p / TICK) * TICK, 2)
# A long-trade plan framed around the live last-traded price. No order is placed.
limit_entry = to_tick(ltp * 0.997) # patient buy, a touch below the market
stop_trig = to_tick(ltp * 0.99) # protective stop trigger, 1% below
stop_limit = to_tick(stop_trig - 0.5) # SL limit price, just below the trigger
target = to_tick(ltp * 1.02) # profit target, 2% above
print(f"{SYMBOL} {EXCHANGE} LTP {ltp:.2f} (tick {TICK})\n")
print(f"{'Order type':<14}{'Side':<6}{'Trigger':>10}{'Price':>10} Behaviour")
rows = [
("MARKET", "BUY", None, ltp, "fills now at best available, pays the spread"),
("LIMIT", "BUY", None, limit_entry, "rests in book, fills only at <= limit"),
("SL", "SELL", stop_trig, stop_limit, "protective stop, wakes at trigger then limit"),
("SL-M", "SELL", stop_trig, None, "protective stop, wakes at trigger then market"),
("TARGET (LIMIT)", "SELL", None, target, "books profit, fills only at >= price"),
]
for name, side, trig, price, note in rows:
t = f"{trig:.2f}" if trig is not None else "-"
p = f"{price:.2f}" if price is not None else "market"
print(f"{name:<14}{side:<6}{t:>10}{p:>10} {note}")
risk = round(limit_entry - stop_limit, 2)
reward = round(target - limit_entry, 2)
print(f"\nLimit entry {limit_entry:.2f}: risk/share {risk:.2f}, reward/share {reward:.2f}, "
f"reward-to-risk {reward / risk:.2f} to 1")RELIANCE NSE LTP 1318.10 (tick 0.05) Order type Side Trigger Price Behaviour MARKET BUY - 1318.10 fills now at best available, pays the spread LIMIT BUY - 1314.15 rests in book, fills only at <= limit SL SELL 1304.90 1304.40 protective stop, wakes at trigger then limit SL-M SELL 1304.90 market protective stop, wakes at trigger then market TARGET (LIMIT)SELL - 1344.45 books profit, fills only at >= price Limit entry 1314.15: risk/share 9.75, reward/share 30.30, reward-to-risk 3.11 to 1
When this ran, the last-traded price was 1318.10. A patient limit buy sits at 1314.15, a touch below the market, hoping the price comes to you. A protective SL to exit a long arms at a trigger of 1304.90 and then works a limit at 1304.40; the SL-M twin arms at the same 1304.90 but converts to a market order so it cannot be left stranded. The target is a limit sell at 1344.45. Framed this way the trade has a risk of 9.75 per share against a reward of 30.30, a reward-to-risk of 3.11 to 1 - geometry you can see before you commit a single rupee.
An SL-M order will fire on trigger but gives you no control over the fill price; in a fast or gapping market it can fill far past your trigger. An SL limit protects the price but can be skipped entirely if the market jumps through your limit without trading there. There is no free lunch in stops - you are choosing which risk to keep.
From submit to fill: the lifecycle
Send the order and it enters a state machine. It starts pending (submitted, not yet acknowledged), becomes open (accepted and resting in the book), and from there either fills - partially filled as liquidity arrives in pieces, then complete - or leaves by a side door: cancelled by you, or rejected by the broker or exchange for a margin, price-band, or risk-check failure. Modifying an order is just a controlled hop within this map: a price or quantity change re-submits the order and, on most venues, sends it to the back of the queue at the new price (we price that queue cost in the next chapter).

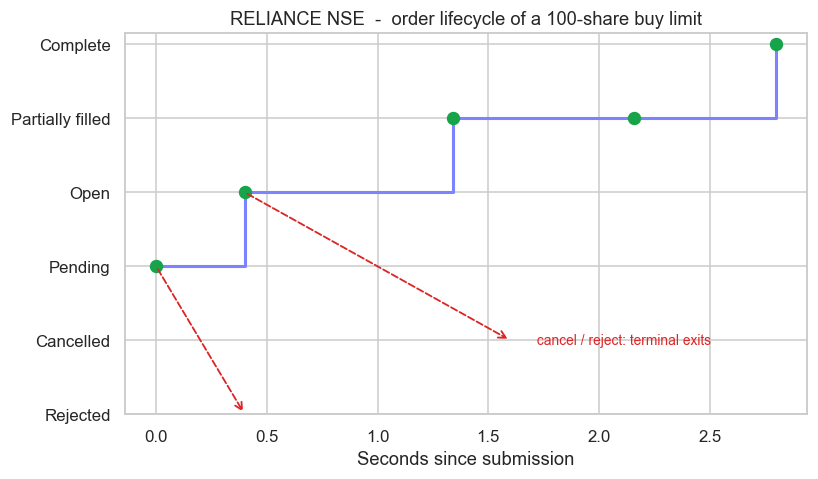

Watch one order walk this map. The simulation below submits a 100-share buy limit and lets liquidity arrive in random chunks, recording the state at each step:
# The order lifecycle as a state-machine timeline, from a small fill simulation.
import os
from pathlib import Path
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
# The full state ladder of an exchange order; this run climbs the happy path.
LADDER = ["Rejected", "Cancelled", "Pending", "Open", "Partially filled", "Complete"]
ypos = {s: i for i, s in enumerate(LADDER)}
rng = np.random.default_rng(19)
QTY = 100 # a 100-share buy limit order
events = [(0.0, "Pending"), (0.4, "Open")] # submitted, then acked and resting
t, filled = 0.4, 0
while filled < QTY: # liquidity arrives in random chunks
t += float(rng.uniform(0.6, 1.4))
filled = min(QTY, filled + int(rng.integers(20, 45)))
events.append((round(t, 2), "Complete" if filled == QTY else "Partially filled"))
xs = [e[0] for e in events]
ys = [ypos[e[1]] for e in events]
sns.set_theme(style="whitegrid")
fig, ax = plt.subplots(figsize=(8, 4.5))
ax.step(xs, ys, where="post", color="#7c83ff", lw=2, zorder=2)
ax.scatter(xs, ys, color="#16a34a", s=60, zorder=3)
# Show the unrealised off-ramps every resting order faces.
ax.annotate("", xy=(0.4, ypos["Rejected"]), xytext=(0.0, ypos["Pending"]),
arrowprops=dict(arrowstyle="->", color="#dc2626", ls="--", lw=1.2))
ax.annotate("", xy=(1.6, ypos["Cancelled"]), xytext=(0.4, ypos["Open"]),
arrowprops=dict(arrowstyle="->", color="#dc2626", ls="--", lw=1.2))
ax.text(1.7, ypos["Cancelled"], " cancel / reject: terminal exits", va="center",
color="#dc2626", fontsize=9)
ax.set_yticks(range(len(LADDER)))
ax.set_yticklabels(LADDER)
ax.set_xlabel("Seconds since submission")
ax.set_title(f"RELIANCE NSE - order lifecycle of a {QTY}-share buy limit")
ax.margins(x=0.05)
out = Path(__file__).with_suffix(".png")
plt.savefig(out, dpi=110, bbox_inches="tight")
print(f"Lifecycle: Pending -> Open -> Partially filled -> Complete in {xs[-1]:.2f}s, "
f"{QTY}/{QTY} filled over {len(events) - 2} fills. Saved {out.name}")Lifecycle: Pending -> Open -> Partially filled -> Complete in 2.80s, 100/100 filled over 3 fills. Saved 02_lifecycle_timeline.png
In this run the order went pending to open to partially filled to complete in 2.80 seconds, filling all 100 shares across 3 separate fills. The red dashed off-ramps on the chart are the paths it did not take this time but always could: a resting order can be cancelled, and a fresh order can be rejected at the door.
The audit trail is your source of truth
Every one of those transitions is logged with a timestamp, an order id, and the price and quantity at that instant. This audit trail - surfaced in OpenAlgo as the order book and trade book - is not bureaucratic exhaust, it is the quant's ground truth. Your strategy logic believes it entered at 1314.15; the trade book knows you actually filled 60 shares at 1314.15 and 40 at 1314.20 a half-second later. That difference is slippage, and you cannot measure, attribute, or fix what you do not record. Reconcile every fill against what your model intended, every session, without exception.
Before sending anything live, run your order logic in OpenAlgo's sandbox (analyzer mode). It validates and routes orders through the same lifecycle and audit trail without touching a real exchange, so you can watch the state transitions and catch a malformed SL trigger or a wrong product type with zero risk.
Who is allowed to trade: UCC and client-code controls
Behind every Indian order sits a UCC, the Unique Client Code that maps the order to a single PAN-verified account at the exchange. It is how the exchange knows whose order this is, enforces position and margin limits, and runs surveillance. When you trade through an API, your orders are tagged to your client code and, under the SEBI framework for safer retail algorithmic trading (the circular dated 4 February 2025, which we revisit in the production module), routed with registered algo identifiers and key or static-IP controls. The practical point for a quant: your automated system is not anonymous. Every order is attributable, rate-limited, and risk-checked before it ever reaches the book.
GTT and iceberg behave differently across venues. A GTT trigger is typically watched broker-side and only becomes a live exchange order once it trips, so it does not hold a queue position while it waits. Iceberg or disclosed-quantity orders refresh a new visible slice each time the current one fills, which means each slice rejoins the queue at the back. Know where your order actually rests before you rely on it.
Product types decide what happens after the fill
One last field changes everything about a filled order: the product type.
- MIS (intraday) gives you higher leverage but is auto-squared-off before the close. Hold nothing overnight.
- NRML (normal) carries a futures or options position overnight at full margin.
- CNC (cash-and-carry) takes delivery of equity into your account for as long as you like.
The same buy of a stock is a fundamentally different trade under each tag - different margin, different overnight risk, different square-off behaviour. Choosing MIS when you meant CNC is a classic and expensive mistake.
We can now read the book and speak its language fluently. Next we go deeper into the single most valuable real estate in that book - your place in the queue - and put a precise rupee value on getting there first.
